รายละเอียดสินค้า

อุณหภูมิ:	-60°C ถึง 80°C	วัสดุตัวเครื่อง:	อลูมิเนียม
วิธีการเชื่อมต่อ:	ประเภทจาน	ซีรี่ส์ผู้ผลิต:	551
ประเภทวาล์ว:	2 ทาง	ความสามารถ:	1/4
ความดันเล็กน้อย:	400 บาร์
เน้น:	ASCO 531Series solenoid valve DC24V , 1/4 operated solenoid valve , ASCO solenoid valve with warranty

Product Description:

ASCO 551, 553, 531 Series Solenoid Valves

The ASCO 551, 553, and 531 series consist of compact spool-type solenoid valves, each tailored to distinct application scenarios through variations in specifications such as port size and flow capacity. Widely utilized for gas control across multiple sectors— including chemical processing and the food and beverage industry—these valve series provide reliable performance in diverse environments. The following sections provide an in-depth overview of the characteristics and applications of each series.

1. 551 Series

Known also as the 8551 Series, the 551 model is a 1/4-inch, 3-way and 4-way compact solenoid spool valve. It is engineered specifically for air and inert gas control in demanding and corrosive environments, making it suitable for use in challenging industrial conditions.

Key Parameters: This valve operates within a pressure range from vacuum up to 150 psi and accommodates medium temperatures between -60℃ and 80℃. Its flow capacity ranges from 0.5 to 1.0 Cv (0.43 to 0.86 Kv). Voltage options include various DC voltages (6VDC, 12VDC, 24VDC, etc.) and AC voltages (24VAC, 110VAC, 220VAC, etc.), allowing flexibility for different power supplies.
Structure & Materials: The valve body is available in anodized aluminum, brass, or stainless steel (optional), and it features port types compatible with G ISO228/1 - G BSPP and NPTF standards. Connections are offered in 1/4-inch NPT and BSP threads. The series supports multiple functional configurations such as 3/2 normally closed (NC), 4/2, 4/3 center closed (CC), and 4/3 normally open (NO) modes. Both single-coil and double-coil setups are supported, with installation possible in any orientation.
Core Advantages & Applications: This series incorporates a hybrid sealing design combining durable T-seals with flexible O-rings, ensuring excellent sealing reliability and resistance to contaminants. It guarantees millions of stable operational cycles and holds certifications including ATEX, UL, and CSA for explosion-proof performance. Typical applications include chemical engineering, oil refining, food and beverage processing, and life sciences.

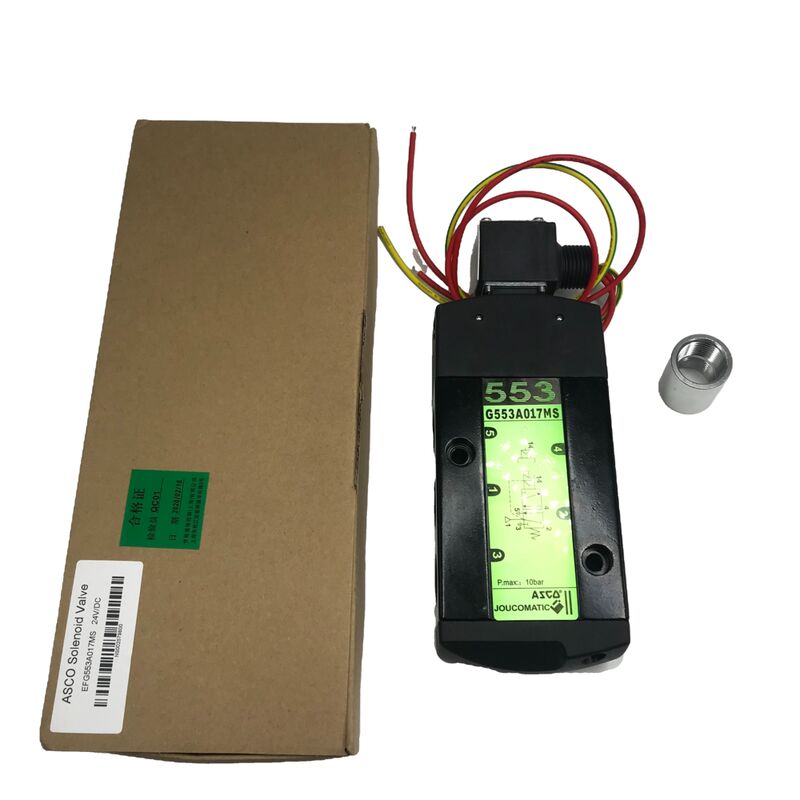

2. 553 Series

Also designated as the 8553 Series, this model features a larger 1/2-inch port size and enhanced flow capabilities compared to the 551 Series. Designed primarily for air and inert gas control, it meets the needs of applications requiring higher throughput.

Key Parameters: The operating pressure spans from vacuum to 150 psi, with a flow range between 2.0 to 6.0 Cv (1.73 to 5.19 Kv), providing superior flow performance. Voltage options align with those of the 551 Series to accommodate multiple power scenarios. Additionally, it complies with an IP65 protection rating and supports functional safety loops up to SIL3, ensuring high safety standards.
Structure & Materials: The valve body options include aluminum, brass, and 316L stainless steel. Port standards adhere to G ISO228/1 - G BSPP and NPTF, with 1/2-inch NPT and BSP thread connections. For installation, the series supports two methods: mounting on actuators equipped with NAMUR interfaces according to the VDI/VDE3845 standard, or direct pipe mounting using threaded connections.
Core Advantages & Applications: The exhaust port is designed to be piped, and NAMUR ports are positioned on the same side, enhancing resistance to dust and water ingress. Its waterproof and explosion-proof features, combined with a low power requirement, make it well suited for remote power supply environments. It is commonly applied in demanding industrial sectors such as chemical processing and refining operations where high flow rates are essential.

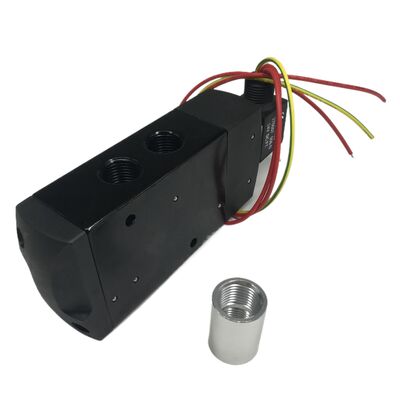

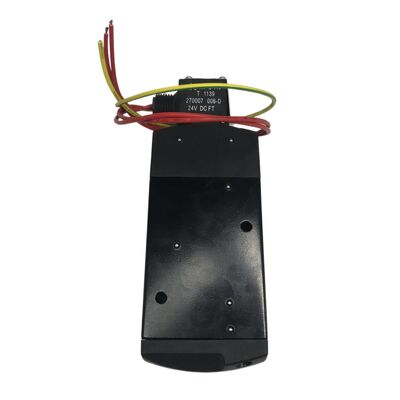

3. 531 Series

The 531 Series focuses on safety and reliability, offering both explosion-proof and non-explosion-proof variants. It is primarily employed for pilot control of actuators in chemical and hybrid industries, with models like the SCG531C001MS being prominent examples.

Key Parameters: This series operates within a pressure range of -0.95 bar to +10 bar and an ambient temperature range from -10℃ to +60℃. At 6 bar, it delivers a flow rate of 1150 L/min (ANR). The interface size is G1/4 with a port diameter of 6mm and a flow coefficient of 0.95 m³/h. Typical voltage options include 220VAC and 24VDC. Coil power consumption features an inrush power of 6 VA and holding power of 3.5 VA.
Structure & Materials: The valve body is made from black anodized aluminum, incorporating low-friction, non-sticking T-seals. The top cover and end caps are constructed of polyamide, while internal components consist of acetal and aluminum. Electrical connections conform to DIN or metal M12 standards, with NAMUR installation and a threaded exhaust port that helps prevent contaminant ingress.
Core Advantages & Applications: An internal air circulation design prevents moisture from entering the actuator and valve body, reducing corrosion risks. The series complies with EN60730 safety standards and holds explosion-proof certifications including ATEX and IECEx. Its exceptional cleanliness and operational stability make it ideal for industries with stringent cleanliness requirements such as pharmaceuticals and food production, as well as for pilot control in the chemical sector.

Technical Parameters:

Connection Method	Plate Type
Valve Type	2-way
Caliber	1/4
Brand Name	ASCO
Manufacturer Series	551
Body Material	Aluminium
Nominal Pressure	400 Bar
Temperature Range	-60°C To 80°C

This ASCO electromagnetic valve is a high-quality electron magnetic valve featuring a plate type connection method. As an electromagnetic valve, it offers reliable performance with a 2-way valve type and a 1/4 caliber. The valve body is made of aluminium and belongs to the ASCO 551 series, capable of handling nominal pressures up to 400 Bar and operating within a temperature range of -60°C to 80°C.

Applications:

The ASCO Solenoid Valve, part of the renowned Manufacturer Series 551, is a high-performance electromagnetic valve designed to meet the demanding needs of various industrial and commercial applications. With a robust aluminium body material and a caliber size of 1/4 inch, this solenoid valve is engineered to handle nominal pressures up to 400 Bar and operate reliably within a wide temperature range from -60°C to 80°C. Certified with CE standards, the ASCO solenoid valve guarantees quality, safety, and compliance with international requirements.

This electromagnetic valve is widely applicable in industries such as oil and gas, chemical processing, water treatment, HVAC systems, and automation machinery. Its ability to precisely control fluid or gas flow under extreme conditions makes it an ideal choice for critical operations requiring rapid response and high durability. Whether it’s regulating hydraulic systems, controlling pneumatic circuits, or managing fuel supply lines, the ASCO solenoid valve is versatile enough to fit diverse scenarios.

Thanks to its compact size and reliable performance, the ASCO solenoid valve is suitable for installation in tight spaces and complex piping arrangements. The valve's electromagnetic operation ensures fast switching and accurate control, which is essential for automated systems in manufacturing plants, automotive applications, and energy sectors. Additionally, the valve’s resistance to corrosion and wear extends its operational lifespan, reducing maintenance costs and downtime.

For customers, ASCO offers a flexible purchasing experience with a minimum order quantity of just 1 unit and pricing available through negotiation to accommodate various budget requirements. Packaging is tailored to client needs, typically shipped in sturdy cartons to ensure safe delivery. With a supply ability of 5000 pieces per month and a delivery time ranging from 1 to 7 workdays after payment, ASCO ensures prompt fulfillment of orders worldwide.

Payment can be conveniently made via T/T, Western Union, or PayPal, supporting international transactions smoothly. Whether you are upgrading existing systems or designing new equipment, the ASCO solenoid valve electromagnetic valve provides a reliable, efficient, and certified solution for controlling fluids and gases in a wide range of applications.

Packing and Shipping:

The ASCO Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely placed in a protective casing to prevent damage during transit. The packaging materials are chosen to provide cushioning and stability, minimizing the risk of impact or vibration.

For shipping, the ASCO Solenoid Valve is packed in sturdy, corrugated cardboard boxes that are labeled with handling instructions and product details. Depending on the order size, multiple units may be palletized and shrink-wrapped to enhance protection and facilitate easy handling.

We ship our products through reliable carriers with tracking options available, ensuring timely and safe delivery to the customer’s specified location. Special care is taken to comply with all relevant shipping regulations and standards to guarantee the integrity of the solenoid valves throughout the shipping process.

แท็ก:

Minimum Order Quantity:	1
ราคา:	ต่อรองได้
Packaging Details:	Carton /As The Clients Require
Delivery Time:	1-7Work Days After Payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	5000PCs Per Month
