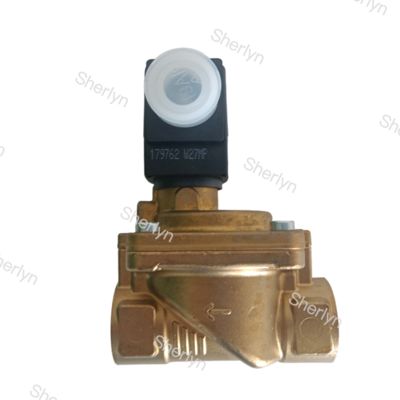

Burkert 00322517 G1/4 EPDM Sealed Brass Valve Body DC24V

Product Description:

The Burkert 6281 solenoid valve integrates various practical features in its design to ensure reliability and long lifespan in demanding operating conditions.

Rigorous material and sealing selections are key highlights. The valve body is constructed from brass material that conforms to industry standards and exhibits strong resistance to zinc corrosion. The essential EPDM seals offer superior heat resistance, ozone aging resistance, and resistance to specific chemicals. With a wide medium temperature range, EPDM seals paired with epoxy resin coils can handle temperatures up to +100 °C.

Operating on a servo-assisted working principle, the valve utilizes a pilot-operated operation that leverages the pressure difference of the medium itself to open or close the main valve port.

Delivering excellent energy-saving and noise reduction performance, the coil component can be equipped with a "Kick and Drop" energy-saving electronic circuit (dual coil technology). This circuit supplies high current during startup and then transitions to low current maintenance post-startup, effectively reducing power consumption and coil heating.

For convenient installation and maintenance, the solenoid valve can be positioned as needed, with the recommended orientation being the coil facing upwards.

Maintaining a high level of safety and adaptability, when paired with standard DIN EN 175301-803 A-type cable plugs, the Burkert 6281 achieves an IP65 protection rating, effectively safeguarding against dust and water ingress. Moreover, the coil is encapsulated with chemically resistant epoxy resin, boosting durability in challenging environments.

Applications:

This solenoid valve, with its material properties, reliable sealing, and flexible configuration, is mainly suitable for the following scenarios:

Water and water supply system: Its brass valve body meets European drinking water standards and can be safely used in drinking water treatment systems, irrigation or sprinkler systems, swimming pool water circulation, and commercial car washing equipment to control water and compressed air.

Specific fluid medium: Thanks to the excellent characteristics of EPDM (ethylene propylene diene monomer) sealing material, this valve is particularly suitable for controlling oil-free, fat-free media, as well as hot water (with a wide temperature range, such as +100 °C for EPDM sealing with epoxy resin coils) , alkaline aqueous solutions, etc.

In the general industrial field, it can work stably in compressed air systems, vacuum systems, and heating and cooling circuits, meeting the needs of various industries such as chemical, pharmaceutical, food and beverage, metallurgy, power, papermaking, and environmental protection.
