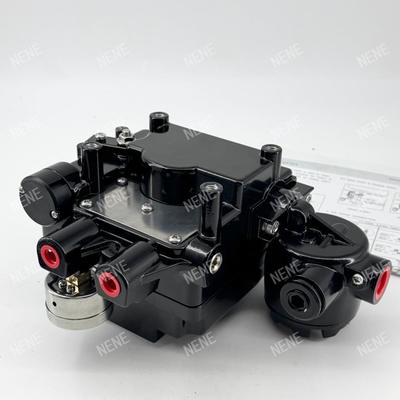

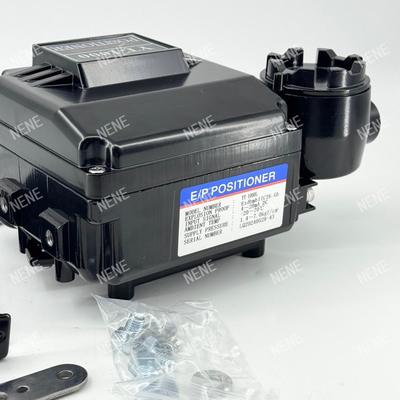

YT-1000L+SPTM Pneumatic Valve Positioner YT-1000L+SPTM Electro Pneumatic Positioner Linear Type

Product Description:

YT-1000 Series (Electro-Pneumatic Positioners):
Base Models: YT-1000L (Linear) and YT-1000R (Rotary).
Description: These devices convert a 4-20mA DC electrical control signal into a proportional pneumatic output pressure. They drive pneumatic actuators to precisely position control valves as required by the control system.

YT-1200 Series (Pneumatic Positioners):
Base Models: YT-1200L (Linear) and YT-1200R (Rotary).
Description: These are force-balance type positioners that receive a 3-15 psi (0.02-0.1 MPa) pneumatic control signal and provide a proportional amplified air output for use in purely pneumatic control loops.

Models with Position Transmitter (+SPTM):
Specific Models: YT-1000L+SPTM and YT-1000R+SPTM.
Description: These are electro-pneumatic positioners from the YT-1000 series integrated with a valve position transmitter. In addition to controlling the valve, they provide real-time feedback of the valve's stem position (typically as a 4-20mA signal) to the control system for remote monitoring.

Features:

High Reliability & Stability: Precision mechanical design ensures long-term operational stability and excellent linearity.

Robust Environmental Adaptation:

• High Vibration Resistance: Unique anti-vibration design allows stable operation within a 5-200Hz frequency range without resonance.
• High Protection Rating: Features an IP66 enclosure rating, providing effective protection against dust ingress and powerful water jets.
• Explosion-Proof Certification: The YT-1000 series typically carries Exia II BT6 explosion-proof certification, making it suitable for hazardous areas.

Easy Installation & Setup:

• Flexible Configuration: Easy conversion between direct/reverse action and single/double acting modes.

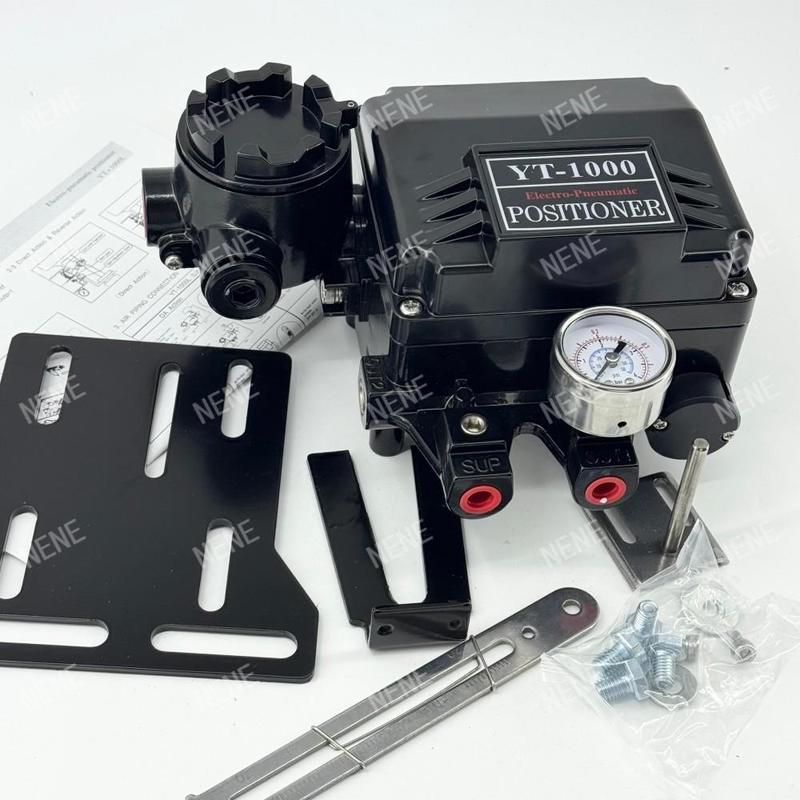

• Universal Mounting: Comes with various mounting kits and accessories to fit most pneumatic actuator brands.

Adjustable Performance:

• Adjustable Damping: Equipped with an adjustable damping mechanism (needle valve) to optimize valve response and prevent hunting by controlling the output airflow rate.
• Split Ranging: Supports input signal split ranging to meet specific process control requirements.

Technical Parameters:

Applications:

Process control plays a crucial role in refineries and chemical plants. It involves tasks such as reactor feed control, distillation column pressure regulation, and pipeline flow control.

In the power generation sector, process control is essential for managing feedwater and steam temperature in thermal power plants. It also involves overseeing auxiliary fluid systems in nuclear power plants.

Control systems are used for chemical dosing and inflow/outflow regulation in water treatment plants and sewage facilities to ensure efficient water and wastewater treatment processes.

Process control is vital in metallurgical operations and paper mills. It includes tasks such as cooling water control for furnaces and rolling mills, as well as stock flow regulation in paper manufacturing.

Various industries, including food & beverage and pharmaceuticals, rely on precision process parameter control to ensure quality and efficiency in their production processes.

Support and Services:

Product Technical Support and Services:

- Installation and setup guidance for Pneumatic Solenoid Valve

- Troubleshooting assistance for operational issues

- Maintenance tips and recommendations

- Warranty information and claims process

- Product documentation and user manuals

- Training and educational resources on Pneumatic Solenoid Valve

Packing and Shipping:

Product Packaging:

The Pneumatic Solenoid Valve is carefully packaged in a sturdy cardboard box to ensure safe transportation. The valve is securely cushioned with foam inserts to prevent any damage during shipping.

Shipping:

We offer fast and reliable shipping services for the Pneumatic Solenoid Valve. Orders are processed promptly and shipped with tracking information provided to monitor the delivery status. We take great care in packaging the valve to ensure it arrives in perfect condition.
