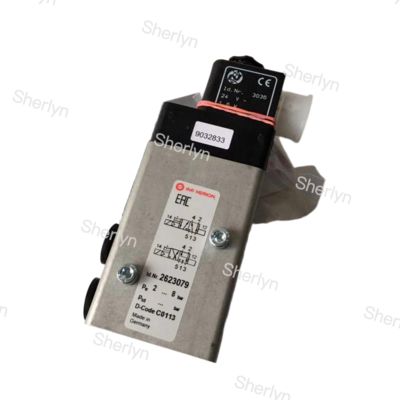

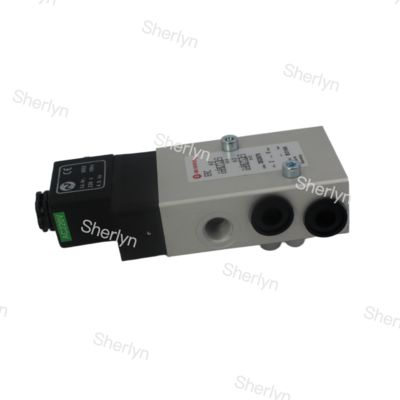

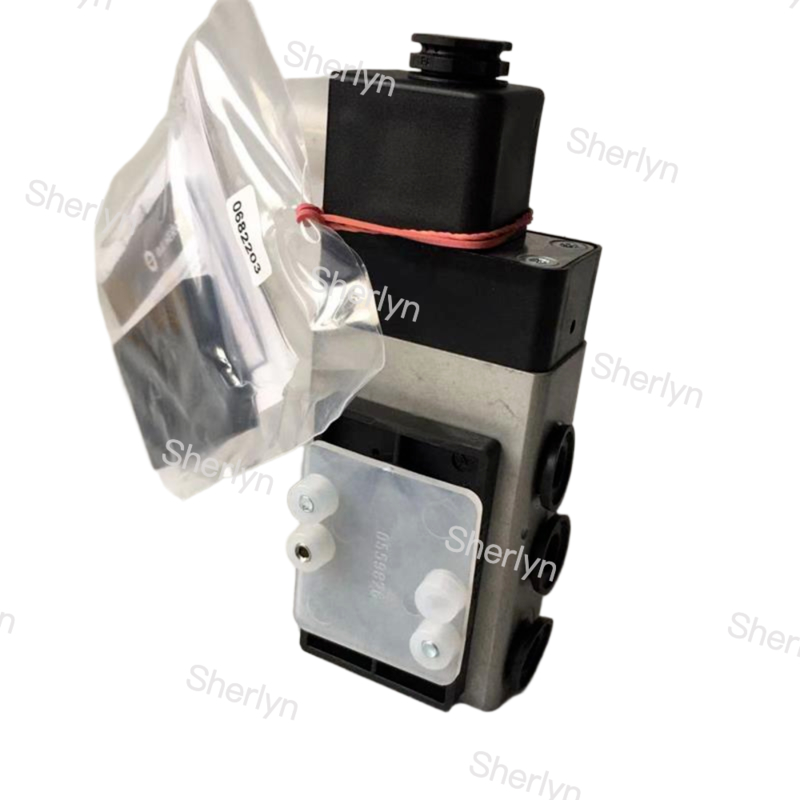

2623079 Norgren Pilot Operated Solenoid Valve Two Position Five Way Directional Valve

Product Description:

NORGREN's pilot operated solenoid valves are highly esteemed in the realm of industrial automation for their superior reliability, significant flow control capabilities, and exceptional durability.

The working principle of these valves employs a pilot structure that utilizes fluid pressure differentials to actuate the main valve core, enabling precise control of large flows with minimal electromagnetic force.

The valve bodies are typically crafted from die-cast aluminum or brass, while the seals are commonly composed of wear-resistant and leak-proof nitrile rubber (NBR). In some valve core models, special coated metal seals are employed for enhanced performance.

These valves offer impressive performance metrics, including a high flow rate of up to 2600 L/min, a broad working pressure range (e.g., -0.9 to 10 bar or 2 to 10 bar), making them suitable for diverse pressure systems.

Operating efficiently in varying environmental conditions, these valves exhibit a wide temperature range (e.g., -10°C to +50°C, with some models reaching -15°C), while the coils boast high protection levels such as IP65, rendering them dustproof and waterproof.

Featuring a manual override function for safety and maintenance purposes, these valves facilitate easy debugging and emergency operations. Additionally, the coil system can be easily disassembled and supports maintenance-free operation.

Applications:

In highly automated production environments, NORGREN pilot operated solenoid valves are the core components for controlling pneumatic systems.

Robot system: used to control the grasping, placement, and precise movements of robots, its fast response and high repeatability meet the strict requirements for rhythm and accuracy in automated production.

Automatic assembly and packaging line: Drive cylinders to complete product positioning, clamping, inspection, and packaging processes, ensuring efficient and smooth operation of the production line.

Material handling equipment: In sorting, conveying and other systems, it controls mechanisms such as baffles and splitters to achieve directional flow and distribution of materials.

Automotive manufacturing has extremely high requirements for the stability and lifespan of pneumatic components, and NORGREN solenoid valves are widely used in this field.

Welding and clamping: Controlling the cylinder of the welding tongs and fixtures to achieve precise welding and fixation of body sheet metal parts is a key component of the white body production line.

Spraying and control: In the painting workshop, reliably control valve switches and participate in precise management of the process.

Rail transit: In rail vehicles, the reliability of solenoid valves is directly related to driving safety.

Door control system: used to control the opening and closing of passenger compartment doors, its high reliability ensures the safety and efficiency of passengers getting on and off the car.

Braking and Stability System: As a part of the auxiliary control system, it participates in key functions such as air braking and sanding of the train.

Support and Services:

Norgren Solenoid Valve product technical support and services include:

- Expert assistance with product selection and compatibility

- Troubleshooting guidance for installation and operation issues

- Maintenance and repair services

- Warranty support and product documentation

Packing and Shipping:

Product Name: Norgren Solenoid Valve

Description: The Norgren Solenoid Valve is a high-quality valve designed for industrial applications, ensuring reliable performance and durability.

Package includes: - 1 Norgren Solenoid Valve - User manual

Shipping Information: - Shipping method: Standard shipping - Estimated delivery time: 5-7 business days - Shipping cost: Calculated at checkout - Shipping restrictions may apply to certain locations
