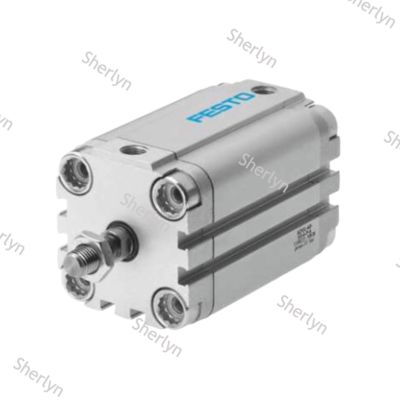

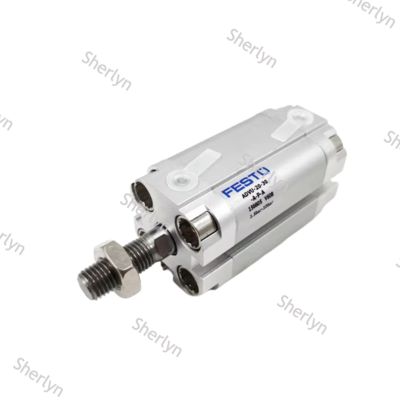

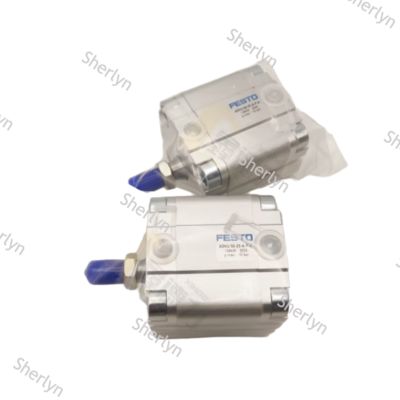

Order Code 156503 Double Cylinder Festo ADVU-12-20-P-A

Product Description:

The ADVU series is a compact short stroke cylinder launched by Festo, covering various working forms such as double acting (ADVU) and single acting (AEVU, AEVUZ).

Main types and specifications
Double acting cylinder (ADVU): controls the extension and retraction of the piston rod through compressed air. The piston diameter range is from 12 mm to 125 mm, with a wide stroke range. The standard stroke is 5 to 80 mm, and some models can choose a stroke range of 1 to 400 mm.
Single acting cylinder: including push type (AEVU) and pull type (AEVUZ). The piston diameter is 12 to 100 mm, and the stroke is usually 5 to 25 mm or 1 to 25 mm.

Design and Performance Characteristics
Compact structure and standardization: The ADVU series cylinders have a simple appearance, smooth surface, and compact structure. Some models comply with international standards such as ISO 6432 (such as ADVU-32-10-P-A) or VDMA, and have good interchangeability and compatibility.
Buffer and sensing functions:
Buffer design: The cylinder is usually equipped with elastic buffer rings or pads (often labeled as "P" in the model) at both ends, which can effectively absorb the energy of motion impact, reduce vibration and noise, and extend the service life.
Position sensing: Many models support non-contact position sensing (often labeled as "A" in the model), which facilitates the installation of proximity sensors (such as inductive sensors SM... -8) to achieve precise detection and control of piston position.

Applications:

The Festo ADVU series cylinders are versatile and find applications in various fields due to their compact structure, reliable performance, and flexible configurability:

General automation equipment: widely used in various automation control systems and pneumatic equipment.

Automotive manufacturing and assembly: utilized for clamping and positioning in welding, handling, pressing, and other processes. For example, model ADVU-32-10-P-A is used for precise positioning.

Electronics and semiconductor industry: in applications where high cleanliness and precision are essential such as chip grinding and spot welding machines. The compact design and optional stainless steel material, as seen in model ADVU-32-40-P-A, meet specific requirements for circuit board assembly and other tasks.

Food and beverage packaging machinery: commonly employed for pushing, measuring, and packaging actions in filling lines, packing machines, and labeling equipment. The example model ADVU-32-10-P-A is used for labeling purposes.

Medical and laboratory equipment: the cylinders' compactness and reliability make them suitable for precise control applications like medical equipment and the biotechnology industry. For instance, model ADVU-20-15-P-A is utilized in the medical and health field.

Other industrial fields: these cylinders are also applied in various sectors including metal processing, printing equipment, and material handling, offering versatile solutions for different industrial processes.

Support and Services:

Our Product Technical Support and Services for Piston Pneumatic Cylinder include:

- Installation guidance and troubleshooting assistance

- Product maintenance recommendations

- Repair services and spare parts availability

- Performance optimization suggestions

- Technical documentation and specifications

Packing and Shipping:

Product Name: Piston Pneumatic Cylinder

Description: High-quality pneumatic cylinder with a durable piston mechanism.

Package Contents:
- 1 Piston Pneumatic Cylinder
- Instruction Manual

Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
