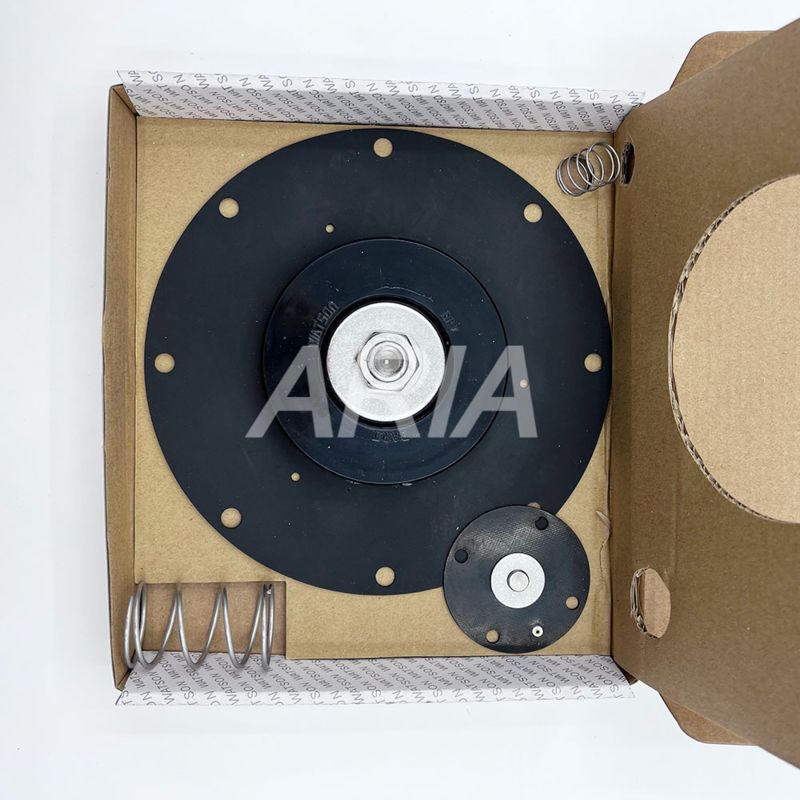

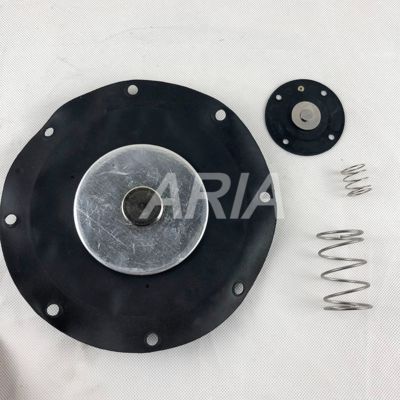

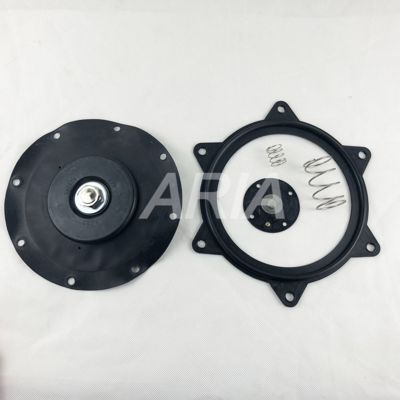

Watson WPS-CA/TG76 3'' 3 inches Pulse valve diaphragm solenoid valve diaphragm repair kit, pulse valve repair kit

Product Description:

Temperature Range:

Room temperature membranes are typically suitable for environments ranging from -25 °C to 85 °C. High temperature membranes can be used in the temperature range of -25 °C to 230 °C.

Lifespan:

Generally speaking, the service life of Watson pulse valve diaphragm can reach 5 years or withstand 1 million operating cycles.

Basic Structure:

The diaphragm is usually a high-quality rubber sheet, with rivet heads installed on it to block compressed air pipelines or valve outlets. At the same time, there are bolt holes around it for fixing support, which can divide the pulse valve into two chambers, front and rear.

Thickness Specifications:

There are various thickness specifications, commonly including 0.3mm, 0.6mm, 1.0mm, 1.5mm, etc.

Working Principle Related Characteristics:

The diaphragm is equipped with a throttle hole. When the armature of the electromagnetic pilot head is engaged and the pressure relief hole is opened, the throttle hole can act as a throttle for the airflow. When the pressure relief hole is closed, it can quickly fill the cavity of the pulse valve with pressure gas, thereby causing the diaphragm to close the channel and stop the pulse valve from blowing.

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the Pulse Valve Diaphragm

The Pulse Valve Diaphragm from WATSON is a versatile and essential component used in a variety of industrial applications. With its high-quality materials and durable construction, this diaphragm is suitable for a wide range of product application occasions and scenarios.

One key application scenario for the Pulse Valve Diaphragm is in the repair and maintenance of pulse valves. As a crucial part of the valve mechanism, the diaphragm plays a vital role in ensuring proper functioning. The diaphragm repair kit offered by WATSON includes all the necessary components for quick and efficient repairs, making it an ideal solution for industries relying on pulse valves.

Additionally, the Pulse Valve Diaphragm can be used as diaphragm repair accessories for various industrial equipment. Its compatibility with different seat materials such as Nylon, Rubber, and PTFE, makes it a versatile choice for diaphragm replacement in different machinery.

With CE certification and a minimum order quantity of 1, the Pulse Valve Diaphragm offers flexibility and reliability to customers. The negotiation-based pricing and packaging details in carton ensure convenience and cost-effectiveness in procurement.

Customers can enjoy a quick delivery time of 1-7 work days after payment, making it a convenient option for urgent replacement needs. The flexible payment terms including T/T, Western Union, and Paypal provide ease of transaction for buyers.

With a supply ability of 5000 pieces per month, the WATSON Pulse Valve Diaphragm ensures consistent availability for industrial operations. The black color and diaphragm material options of TPE, NBR, EPDM, and FKM further enhance the product's suitability for a wide range of applications.

Whether used in pulse valves, as diaphragm repair kits, or as diaphragm repair accessories, the Pulse Valve Diaphragm from WATSON proves to be a reliable and adaptable solution for various industrial needs.

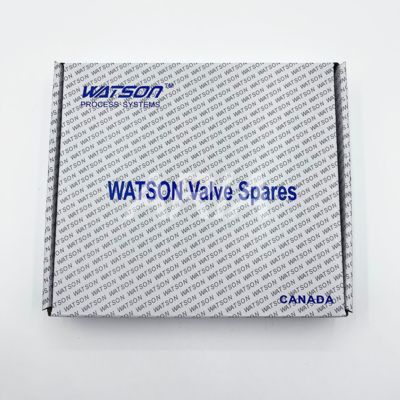

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality replacement diaphragm for pulse valves

Material: Durable rubber

Package Includes: 1 x Pulse Valve Diaphragm

Package Dimensions: 5 x 5 x 1 inches

Shipping Method: Standard shipping

Shipping Time: 3-5 business days
