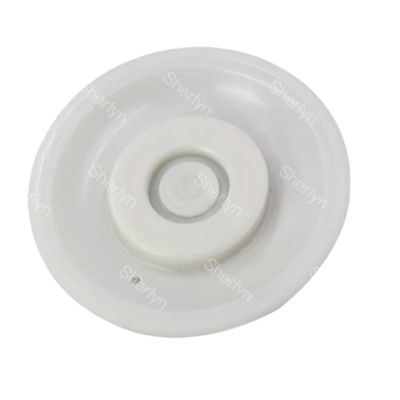

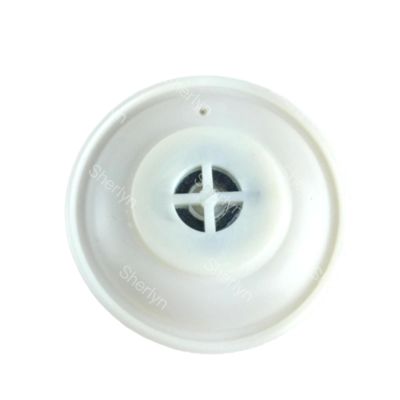

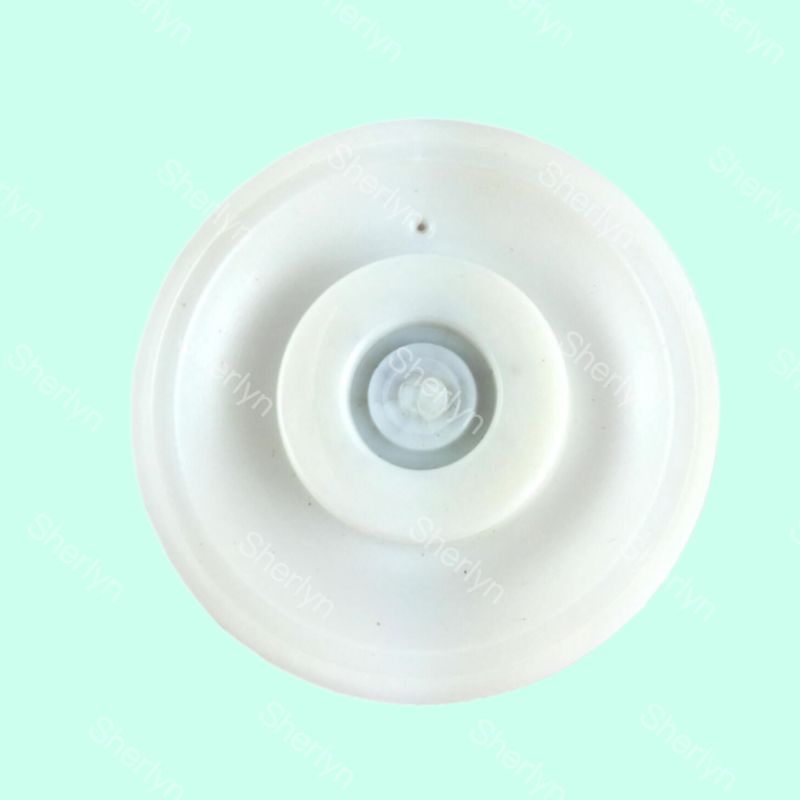

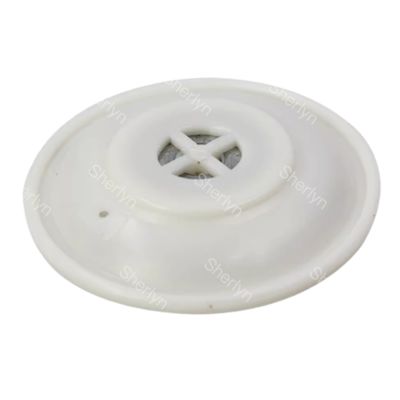

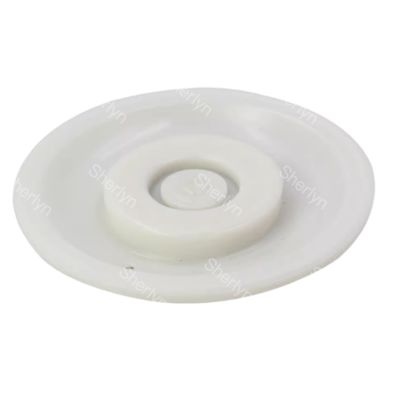

Industrial NBR Diaphragm 3/4'' Pulse Valve for Fitted Model AE1818B in Dust Collector Equipment

Product Description:

The diaphragm holds significant importance in the operation of the pulse valve. When the pulse valve is activated, the air trapped above the diaphragm is rapidly released, leading to the swift opening of the main valve. On the other hand, when the pulse valve is deactivated, air exits through the bleed hole to balance the pressure on the diaphragm, resulting in the immediate closure of the pulse valve.

• Diaphragm Material Options: TPE, NBR, EPDM, FKM
• Seat Material Options: Nylon, Rubber, PTFE
• Diaphragm Color Options: Black, White, Red, Green, and more
• Diaphragm Size: Custom sizes available to match your specific requirements
• Packaging: Custom plastic bags with low minimum order quantity (MOQ) for your convenience

Applications:

The baghouse pulse jet system utilizes M/D series diaphragms (e.g., M/D25) as core sealing and actuating components of the pulse valves. These diaphragms control the momentary release of compressed air in the baghouse, allowing high-frequency pulses (several times per second) to clean the surface area of filter bags.

Operating procedure: electrical signal triggers the pulse valve → diaphragm opens instantaneously → compressed air is injected into the filter bags via blowpipes → filter bag expands and shakes off dust → diaphragm returns to closed position.

Compatible valve models include:

• Autel AE1825B, AE2825B, AE1825R, and other 1-inch pulse valves;
• MD series pulse valves (e.g., MD120, MD125, MD140S), especially suitable for valves with nominal diameters ranging from 20mm to 76mm.

Powder conveying and silo arch breaking play a crucial role in clearing blockages in pneumatic conveying pipelines or breaking material bridges in silos. The use of pulse airflows helps prevent clogging and is applicable in scenarios involving coal dust, grains, plastic pellets, and more.

Support and Services:

The Product Technical Support and Services for the Pulse Valve Diaphragm include:

- Troubleshooting assistance for installation and operation issues

- Guidance on maintenance and care for optimal performance

- Access to online resources such as manuals and FAQs

- Warranty information and support for product replacements or repairs

Packing and Shipping:

Product Name: Pulse Valve Diaphragm

Description: High-quality diaphragm designed for pulse valves

Material: Durable rubber

Package Includes: One pulse valve diaphragm

Shipping Information:

Shipping Method: Standard Shipping

Shipping Time: 2-5 business days

Shipping Cost: $5.00
