GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve

GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve

  • GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
  • GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
  • GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
  • GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
  • GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
  • GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve
รายละเอียดสินค้า:
ชื่อแบรนด์: GOYEN
ได้รับการรับรอง: CE
หมายเลขรุ่น: RCA35T
การชำระเงิน:
Minimum Order Quantity: 1
ราคา: ต่อรองได้
Packaging Details: Carton /As The Clients Require
Delivery Time: 1-7Work Days After Payment
เงื่อนไขการชำระเงิน: T/T, Western Union, Paypal
Supply Ability: 5000 Pieces/1Month
ติดต่อ
รายละเอียดสินค้า
ซีรี่ส์วาล์ว:: ซีรี่ส์ T วัสดุร่างกาย: อลูมิเนียม (diecast)
ช่วงแรงดันในการทำงาน: 5 ถึง 125 psi โครงสร้างวาล์ว: มุมขวาพอร์ตเกลียว
ขนาดพอร์ต:: 1 1/2 '' วัสดุไดอะแฟรม: NBR, FKM
เน้น:

1.5-inch electromagnetic pulse valve

,

Pneumatic spray pulse valve

,

RCA35T pulse jet valve

Product Description:

Pulse Jet Valve Overview: Pulse Jet valve is a type of valve that transforms the continuous input signal into a pulsating signal through the delay caused by the movement of gas within gas resistance and gas capacity.

Inner Structure Features: The air inlet structure of the right angle pulse jet valve, along with the use of a positioning steel ring during installation, serves to prevent loosening from inertial impacts. This also guarantees the precise installation position.

Durability and Convenience: Even after prolonged use, the stainless steel nut on the valve maintains its durability, ensuring easy disassembly and reassembly as needed.


Applications:

Bag Filter Pulse Cleaning System

Function: The bag filter pulse cleaning system controls the immediate release of compressed air into the filter bag to eliminate surface dust.

Applicable Equipment:

  • Cement plant rotary kiln dust collector
  • Steel plant blast furnace gas purification system
  • Bag dust removal device for coal-fired power plants
  • Dust collection system for chemical/pharmaceutical industry
  • Material conveying and pneumatic conveying system

This system is used for pulse airflow dredging in cases of blocked pipelines, such as in grain and fly ash conveying pipelines.

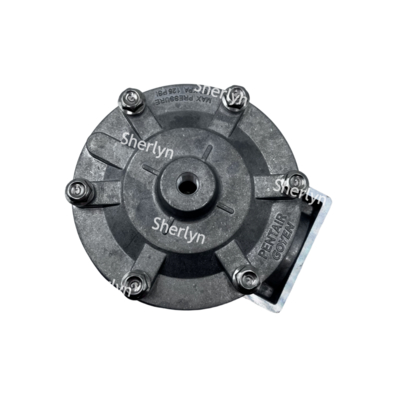

GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve 0

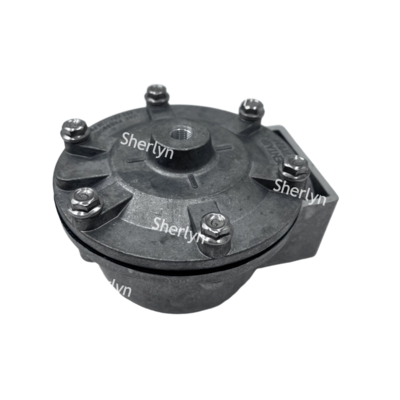

GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve 1

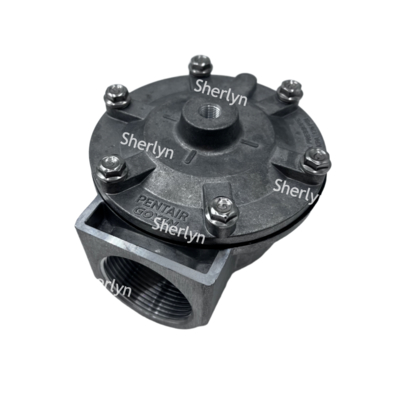

GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve 2

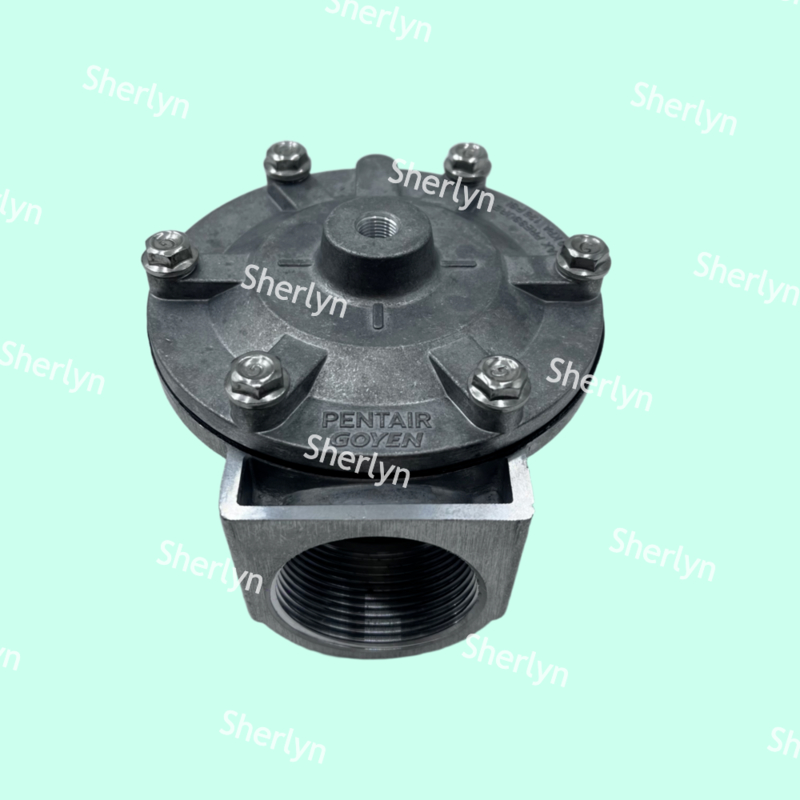

GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve 3

1-1/2'' RCA35T Replacement Remote Pilot Valve For Dust Collector


Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different Structure:

1. Right Angle Type
2. Submerged Type
3. Quick Mount Type
4. Straight Through Type
5. Flanged Type


Main Dimension:

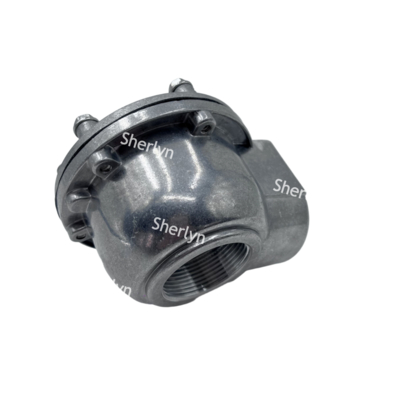

GOYEN Pulse Valve RCA35T RCA32T 1.5-inch Electromagnetic Pulse Valve Spray Valve Pneumatic Valve 4
Technical Data:
Model No RCA15T RCA20T RCA25T RCA35T RCA45T RCA50T RCA62T RCA76T
Orifice Size 15 20 25 35 45 50 62 76
(mm)
Port Size 1/2'' 3/4'' 1'' 1 1/2'' 1 1/2'' 2'' 2 1/2'' 3''
Pilot Size 1/8'', 1/4''
Diaphragm Number 1 2
Working pressure 5 to 125 psi
Diaphragm Material NBR, FKM
Body Material Aluminum (diecast)
Valve Structure Right Angle (Outlet is at 90° to Inlet)

Support and Services:

The Product Technical Support and Services for Pulse Jet Valves include:

- Troubleshooting assistance for installation and operation issues

- Maintenance guidelines and recommendations

- Repair services for damaged or malfunctioning valves

- Product training and education for proper usage

- Upgrades and enhancements to improve valve performance


Packing and Shipping:

Product Packaging and Shipping:

The Pulse Jet Valves are carefully packaged to ensure they arrive in perfect condition. Each valve is placed in a sturdy box with ample padding to prevent damage during transit. The packaging is designed to be compact and efficient to minimize shipping costs.

For shipping, we use reliable courier services to deliver the Pulse Jet Valves to your doorstep in a timely manner. You will receive a tracking number once your order is dispatched so you can monitor the delivery status.
